Product information

Plunger Type Flow Control Valve DN 150/600 PN25

Application

  • Open – Close valve for high presure and flow velocity

  • Water Level Control Valve

  • Bottom Outlet Valve

  • Turbine Inlet and Turbine By – Pass Valve

  • Pressure Control Valve for Drinking Water

  • Flow Rate Regulation Valve

  • Pressure Control for Irrigation Projects

Control

  • Handwheell

  • Electrical Actuator

  • Pneumatic Actuator

  • Hydraulic Actuator

  • On-off or Modulating Operation

ADVANTAGES

  • Pressure, flow rate and water level control valve

  • Low operation torques on high pressure diferences

  • High safety coefficient design

  • Lineer regulation capability

  • Suitable for modulating operation

  • Low cavitation risk

  • Metal seaing, additional EPDM seal ring

  • Special outlet design for project.

  • Operation types for application areas

  • Low maintenance cost

DESIGN

  • Flanges EN 1092-2

  • PN10 – PN64

  • Double Flange

  • Face to Face EN 558 – 1 Series 15 (up to DN500 1,5 x DN)

  • Metal seaing, additional wras certificated EPDM seal ring

  • Test standart EN 12266-1

  • Coating wras certicated electro powder epoxy coating ral 5017(min 250 mic.)

  • Max Operation Temperature 85 °C

CORROSION PROTECTION

  • Electrostatic Powder Coating (Coating Brands Certificated By WRAS)

Production Colors

Production Diameters and Pressures

DN

  • İçerik Eklenmemiş

PN

  • İçerik Eklenmemiş

Documents

PVDW Wrass Certificated Plunger Valve Product Catalog PVDW Wrass Certificated Plunger Valve Dimentions Table PVDW Wrass Certificated Plunger Valve Part List PVDW Wrass Certificated Plunger Valve User Manual Plunger Flow Control Valve Wras

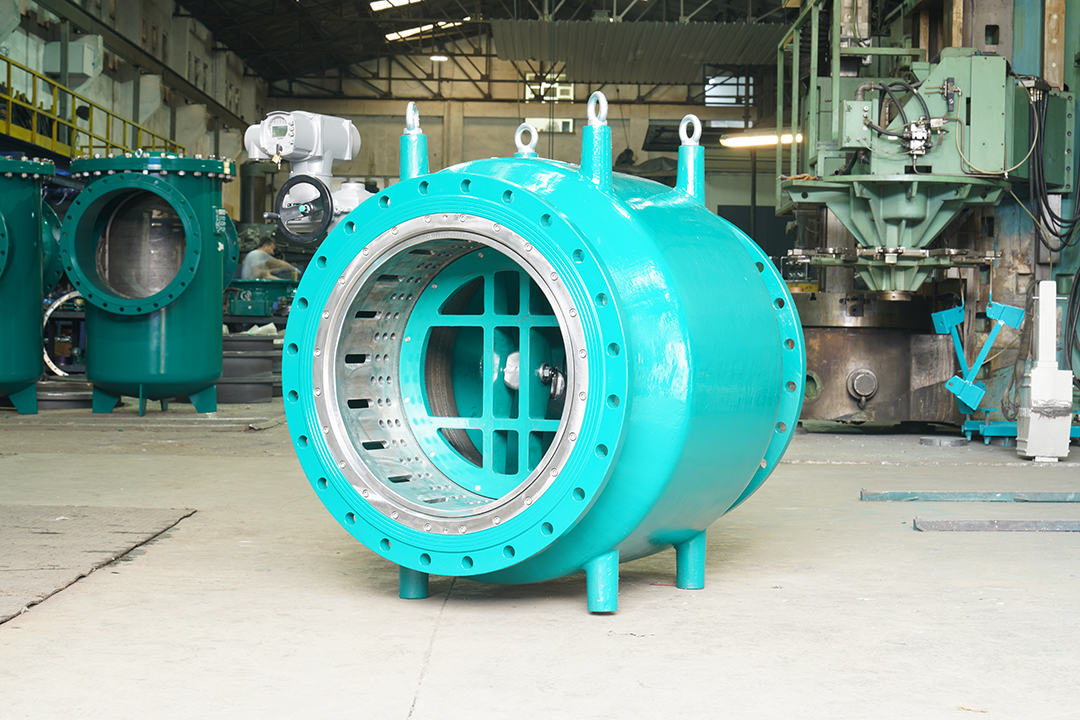

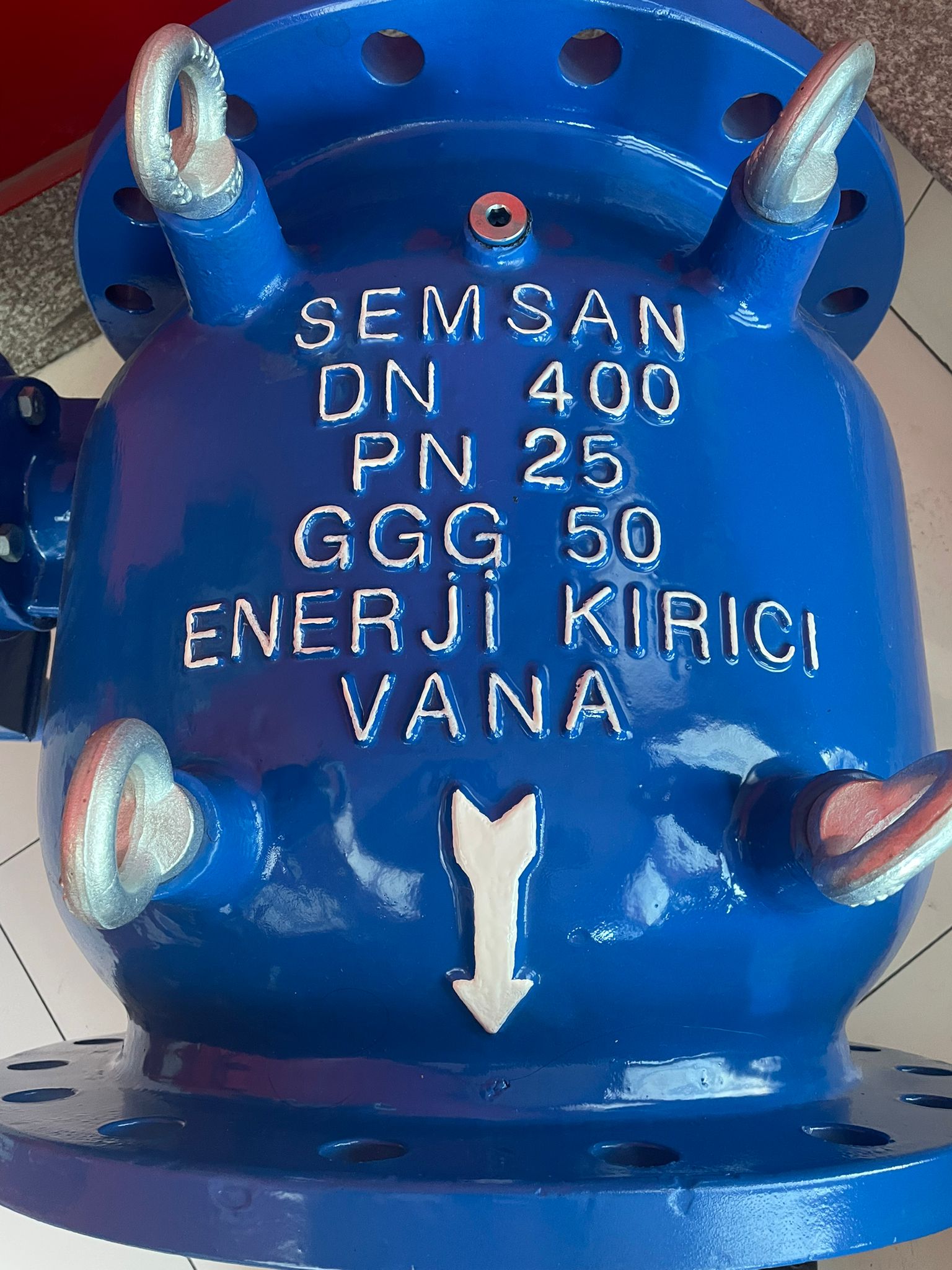

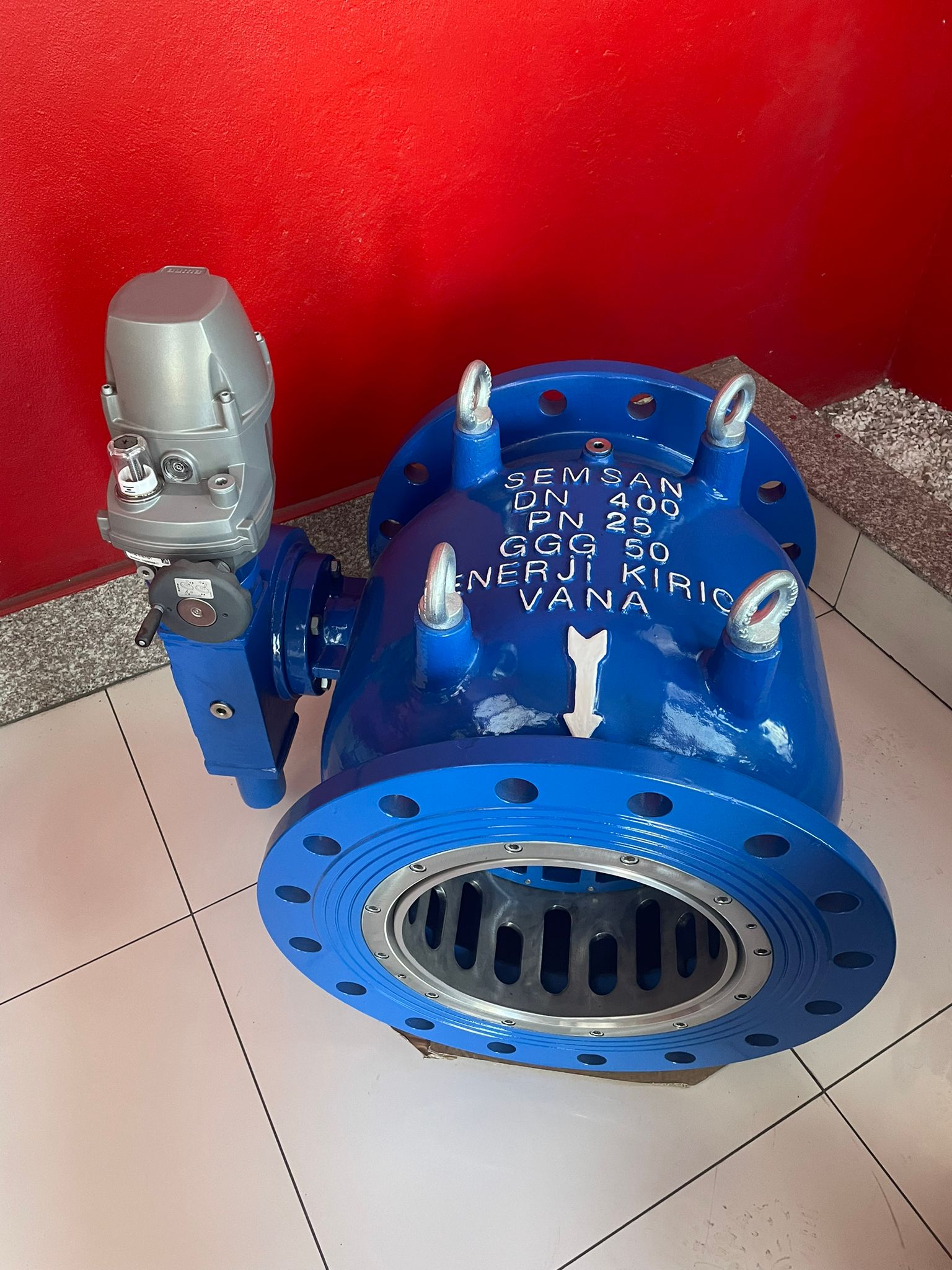

Product Images
