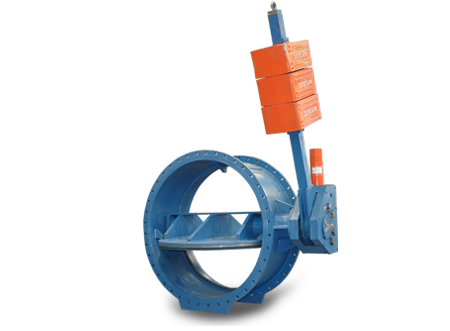

HYDRAULIC CONTROLLED CHECK BUTTERFLY VALVE (TURBINE INLET VALVE)

HYDRAULIC CONTROLLED CHECK BUTTERFLY VALVE (TURBINE INLET VALVE)

Product information

(TURBINE INLET VALVE) DN 250/2800 | PN 10 / 16 / 25 / 40

Application

  • Turbine Inlet Valves in Hydroelectric Power Plants

  • Emergency Shut Off Valves in Dams and Reservoirs

  • Check Butterfly Valves for Pumping Stations

Control

  • Hydraulic Actuator

ADVANTAGES

  • Opening and Closing With Hydraulic Piston

  • Closing With Counter Weight

  • High Security Coefficient

  • Suddenly Shut-Off for Emengency

  • Additional Limit Switch for Hydraulic Leakages

  • Two Different Operation Adjust Valve

DESIGN

  • TS EN 593 Certificated

  • Double Flange

  • Double Eccentric

  • Flanges DIN EN 1092 PN 10 – PN40

  • Valve Shaft Double Offset

  • Face to Face EN 558-1 Series 14 (DIN 3202,F4) (Short Pattern is Optional)

  • Mechanical Position Indicator and Limit stops on Gear Box

  • Body Sealing Surface; Corrosion - Resistant Stainless Welded AISI 316 and Microfinished.

  • Adjustable and Replaceable Sealing Ring

  • EN 12516 – 1 Steel Welded Design (Optional)

  • Max Operation Temperature 50 °C

CORROSION PROTECTION

  • Electrostatic Powder Coating for

  • Drinking Water

  • Zinch – Rich Epoxy Primer

  • Coal – Tar Epoxy

  • Glass Flake Epoxy

  • Enamel Epoxy for Ultraviolet

  • Completely Stainless Steel Design

  • Ebonite Coating for Seawater

Production Colors

Production Diameters and Pressures

DN

  • İçerik Eklenmemiş

PN

  • İçerik Eklenmemiş

Documents

BFVH Hydraulic Controlled Check Butterfly Valve Check Valve

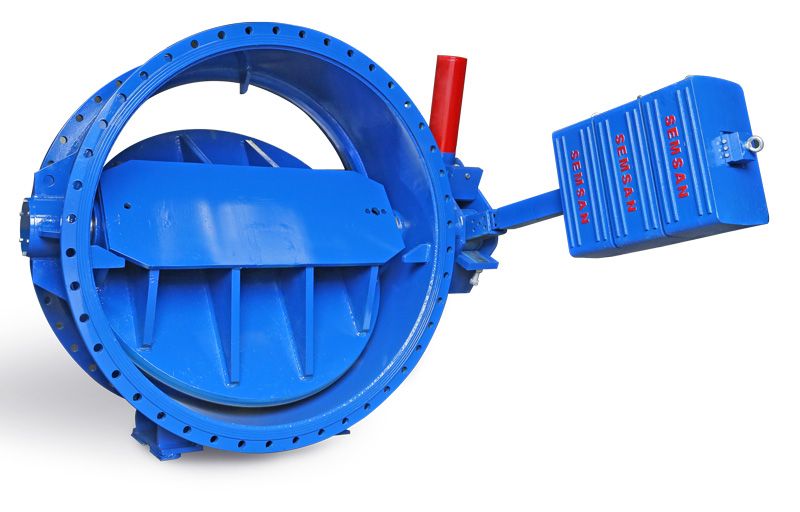

Product Images
