TILTING CHECK VALVE

TILTING CHECK VALVE

Product information

DN 150/2000 | PN 10/ 16

Control

  • Closing with counterweight

  • Closing with hydraulic damper

ADVANTAGES

  • Body and disk ductile iron GGG 40/50

  • Valve shaft stainless steel AISI 420

  • Shaft bearing is bronze

  • Epoxy coating for drinking water

DESIGN

  • TSE-EN 12334 certificated

  • Double flanged

  • Valve disk double offset

  • Flanges DIN EN1092 - PN 10/16 norms

  • Face to face EN558-1 Series 14, DIN3202 F4

  • Body and disk sealing surface is corrosion – resistant stainless steel welded AISI 316

  • Adjustable counterweight lever

  • Maximum operating temperature 50 °C

CORROSION PROTECTION

  • Electrostatic Powder Coating for Drinking Water

  • Zinch – Rich Epoxy Primer

  • Coal – Tar Epoxy

  • Glass Flake Epoxy

  • Enamel Epoxy for Ultraviolet

  • Completely Stainless Steel Design

  • Ebonite Coating for Seawaater

OPTIONAL

  • DN > 2000

  • PN > 16

  • Stainless steel disk and body

  • Adjustable and replaceable EPDM sealing ring

  • Disk designed with angle

Production Colors

Production Diameters and Pressures

DN

  • İçerik Eklenmemiş

PN

  • İçerik Eklenmemiş

Documents

IQ NET 9001 ISO 9001

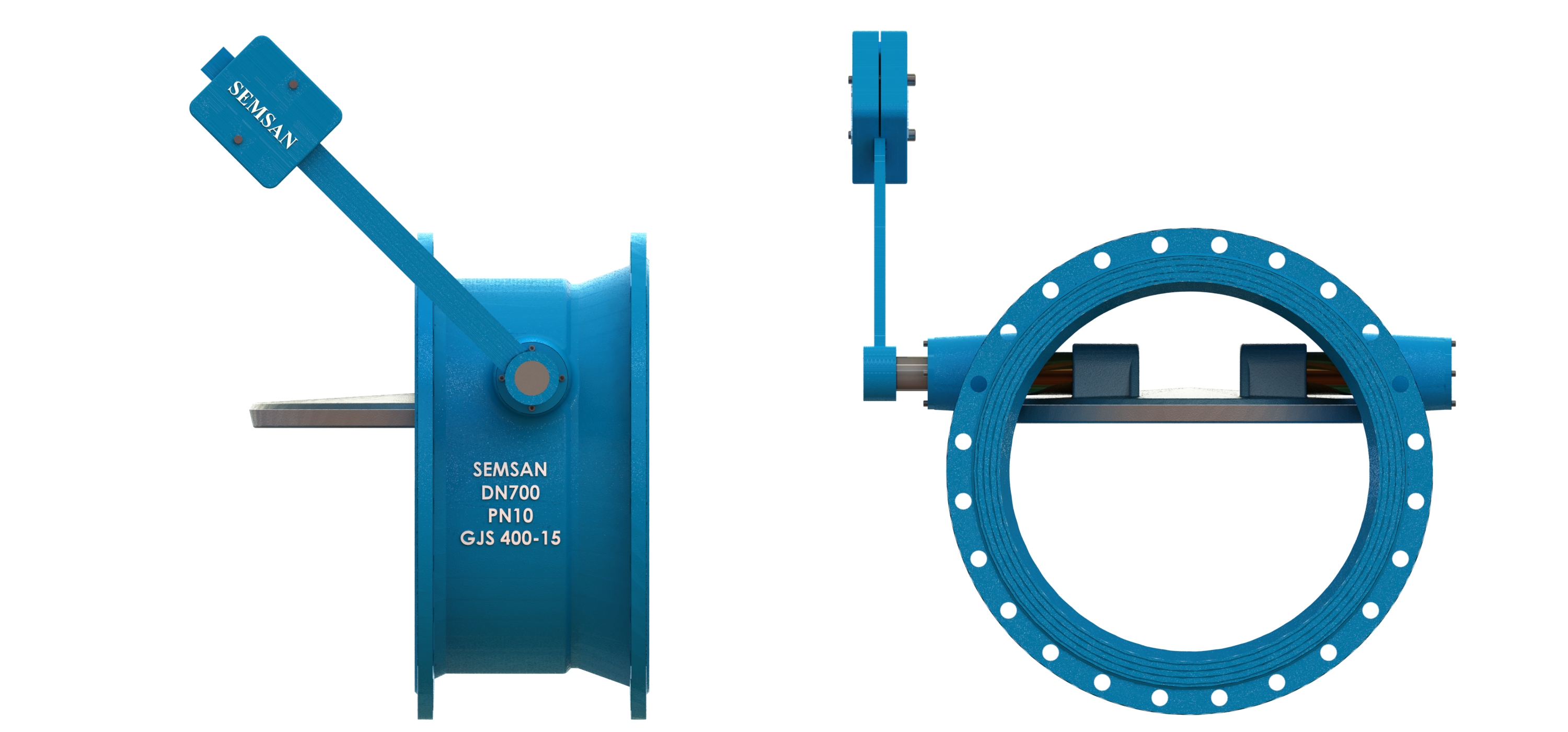

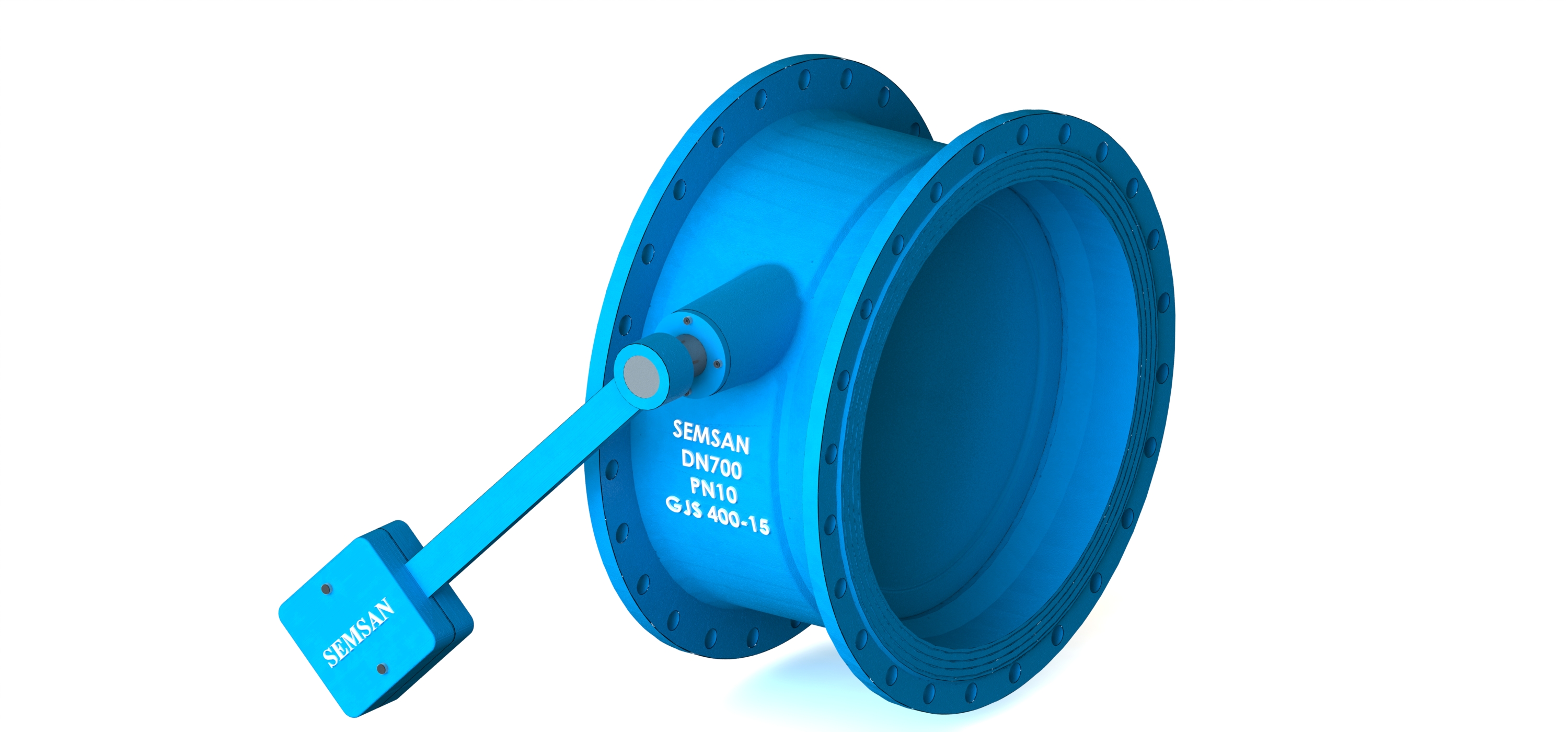

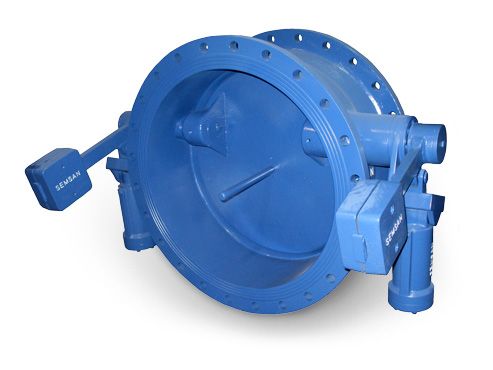

Product Images
