SWING CHECK VALVE
Product information
DN 40/1000 | PN 10/ 16
Control
Closing with hydraulic damper
Working with counterweight and without counterweight
DESIGN
TS EN 12334
Flanges DIN EN1092 - PN 10/16 Norms
Face to face EN558-1 series 48 (2DN+100)
Maximum operating temperature 50 °C
CORROSION PROTECTION
Electrostatic Powder Coating for Drinking Water
Zinch – Rich Epoxy Primer
Coal – Tar Epoxy
Glass Flake Epoxy
Enamel Epoxy for Ultraviolet
Completely Stainless Steel Design
Ebonite Coating for Seawaater
MATERIAL
Body and disk ductile iron GGG 40/50
Valve shaft stainless steel AISI 420
Shaft bearing is bronze
OPTIONAL
DN > 1000
PN > 16
Stainless steel disk and body
Adjustable and replaceable EPDM sealing ring
Production Colors
All Colors Details
For colors other than the standard product colors, please contact us.
* Product colors may vary in digital environments. Please refer to the color swatch associated with the color code.
Production Diameters and Pressures
DN
- İçerik Eklenmemiş
PN
- İçerik Eklenmemiş
Documents

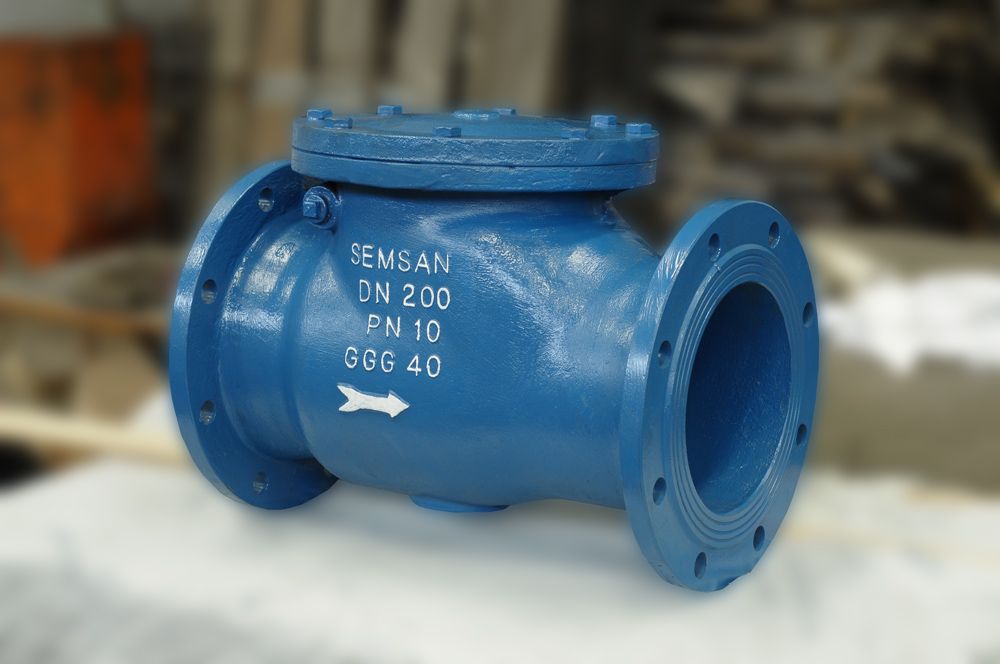

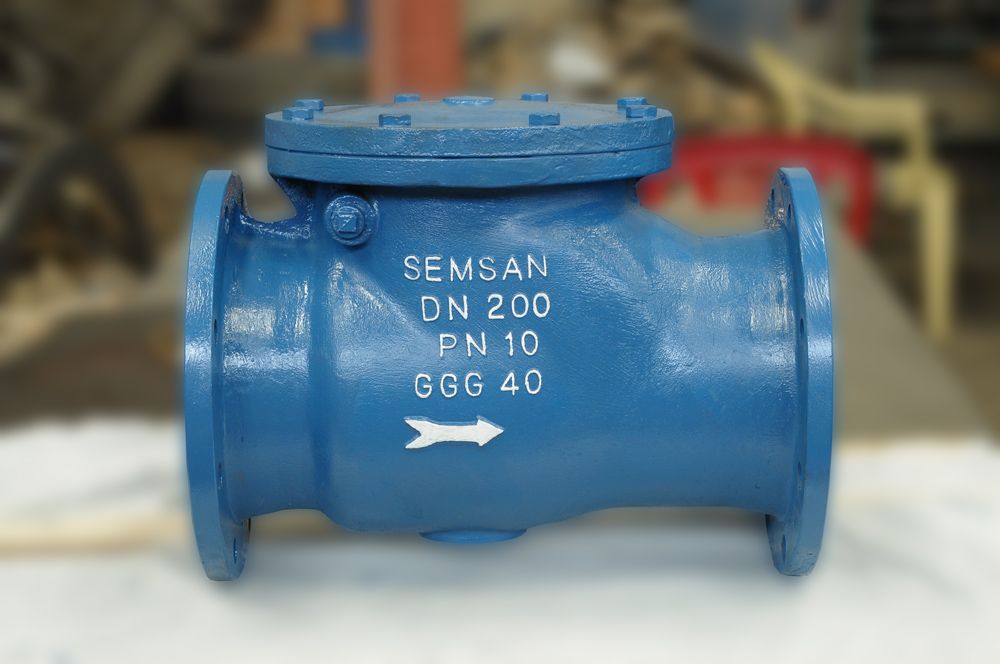

Product Images
